Rotating Wall Waterjet Systems
Maximizing Throughput With Simultaneous Processing

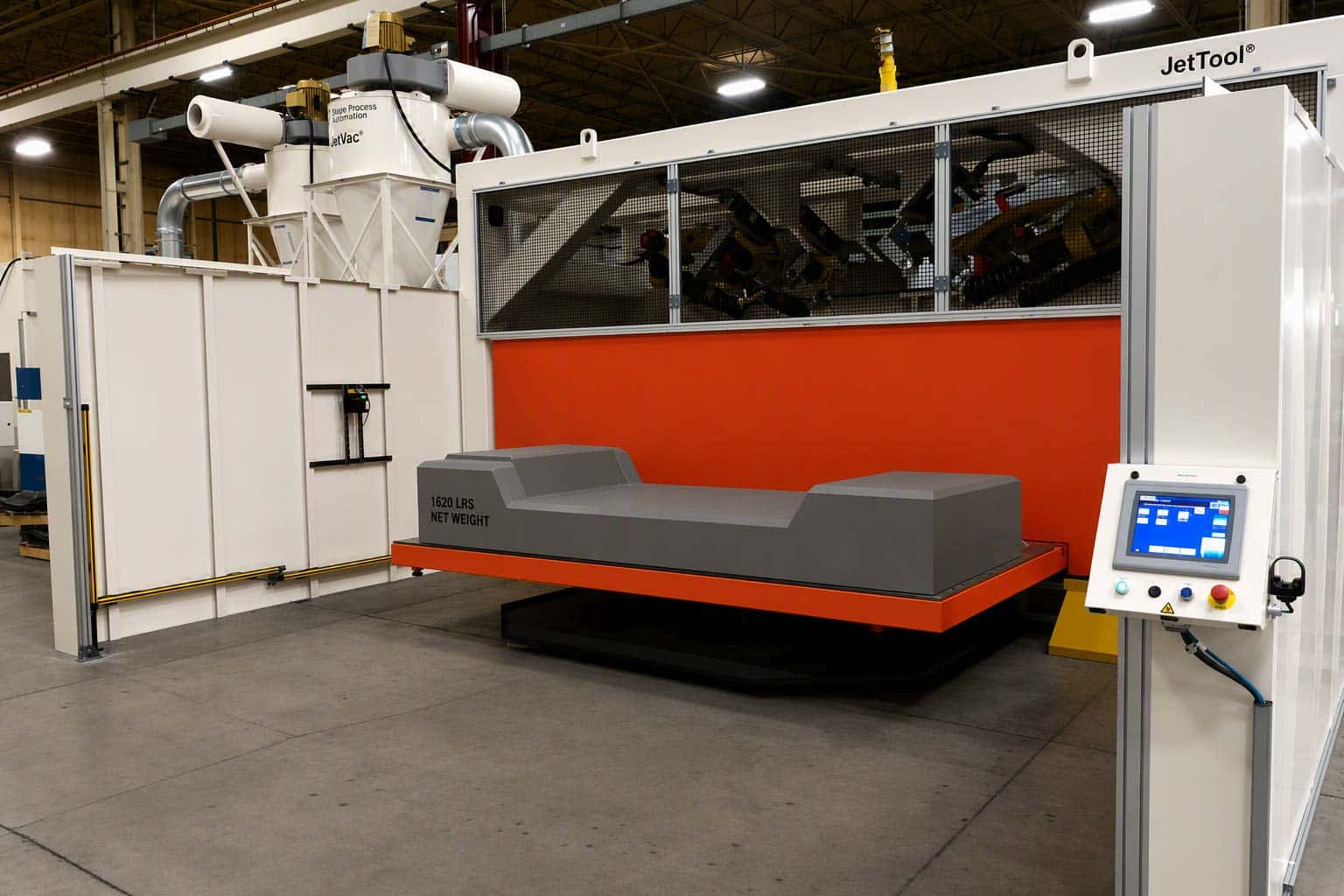

The Rotating Wall Waterjet System is engineered specifically for high-production environments where maximizing throughput and minimizing non-value-added time are critical. By dividing the cell into two stations separated by a pivoting wall, operators can load one side while robots are actively cutting on the other — eliminating downtime and enabling true continuous operation.
This design is one of Shape Process Automation’s most popular solutions for automotive and medium-to-high-volume manufacturers who need predictable cycle times and fast station-to-station turnover.
Key Features and Benefits of Rotating Wall Waterjet Cutting
- Continuous operation: Load one fixture while cutting on the other — zero idle time. Facilitates a continuous flow of parts by allowing simultaneous setup and cutting operations.
- High-volume efficiency: Designed for fast takt times and repeatability. Eliminates robot downtime associated with manual loading/unloading, significantly boosting production speed.
- Multi-robot scalability: Add robots as throughput requirements grow.
- Worker safety: The wall acts as a physical barrier and safety interlock, ensuring the operator is never in the same zone as the active cutting robot.
- Predictable production: Consistent cycle times suited for multi-shift operations.
Ideal Rotating Wall Waterjet Applications
- Automotive interior trim (dash, carpet, headliner, pillar covers)
- High-volume composite trimming
- Consumer goods with consistent batch sizes
- Any repeated part family where station-to-station flow improves takt time
When to Choose a Rotating Wall Waterjet System
Choose the Rotating Wall cell if you:
- Need continuous production and predictable takt time
- Run the same part or part families in high volume
- Want to keep operators safely separated from active cutting
- Need to maximize robot uptime without adding more robots
NEED IMAGE OR VIDEO
Typical System Configuration
| Component | Specification/Typical Option |
| Robots | One to three industrial robots, sized and configured to suit the application |
| Wall | Servo-driven rotating wall with dual load/cut stations |
| Fixture | Two sets of fixtures (one per station) |
| Pump | High-pressure waterjet pump (H2O, Flow, KMT) |
| Safety | Full enclosure with automated interlocks |
NEED IMAGE OR VIDEO
Ready to Maximize Your Uptime?
Talk with SPA about expected takt time, part mix, and robot count — and get a rotating wall configuration sized for your production schedule.
