Overhead Gantry Waterjet Systems
Maximum Reach and Unrivaled Access for Large Parts

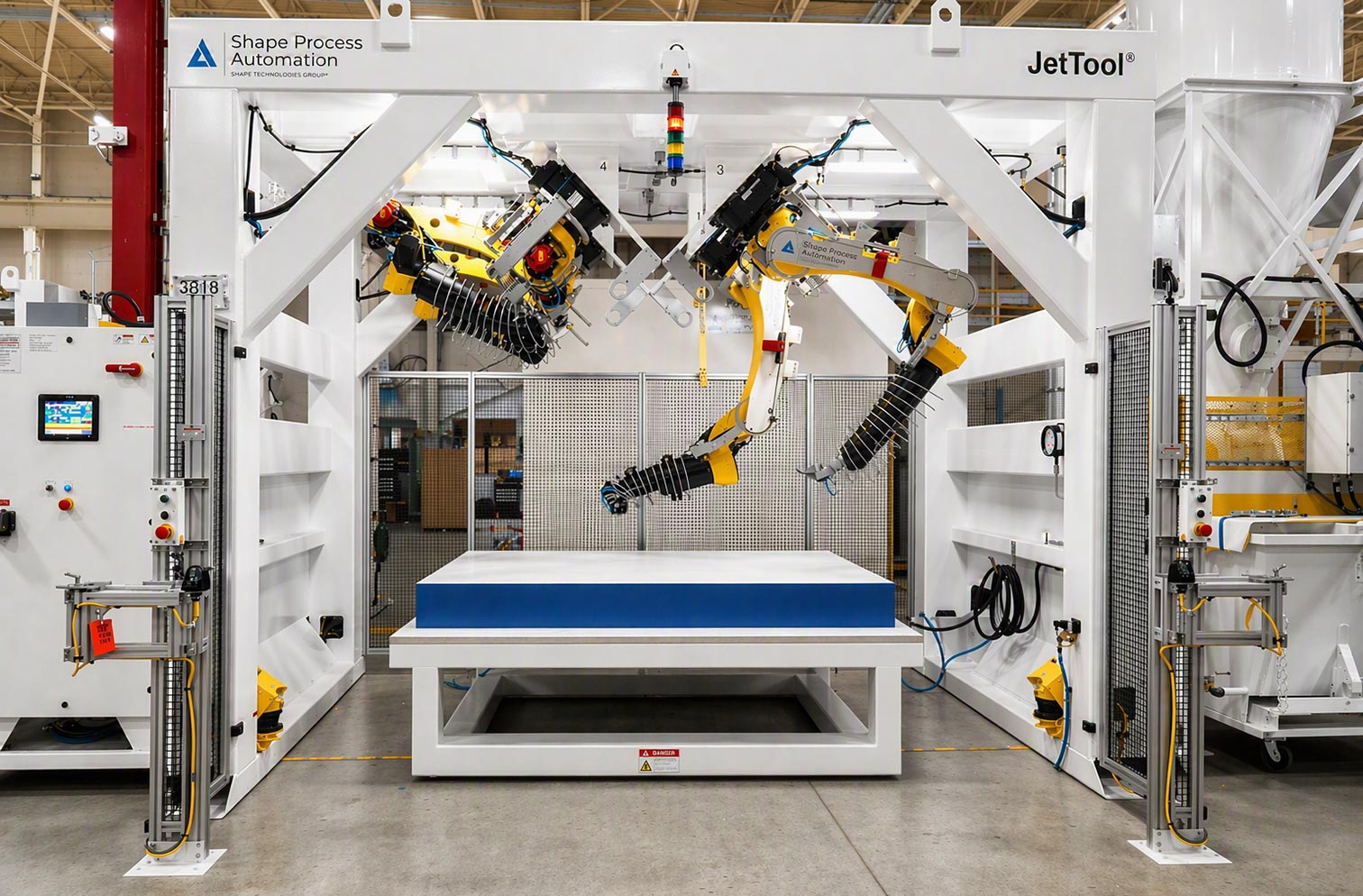

The Overhead Gantry Waterjet System is the premier solution for applications requiring a large work envelope and unimpeded access to parts. Unlike floor-mounted systems, the gantry structure is suspended overhead, allowing the waterjet cutting head to approach the workpiece from virtually any angle across a broad surface area. This configuration is essential for trimming large, complex 3D parts typical in the automotive, aerospace, and mass transit industries.
Key Features and Benefits of Overhead Gantry Waterjet Cutting
- Expanded Work Envelope: Provides the largest possible reach, making it ideal for large parts like vehicle headliners, carpets, and dashboards.
- Superior Accessibility: The overhead design ensures 360-degree access to the part without obstruction from floor-mounted components. This also improves ergonomics, keeping fixtures accessible and simplifying material flow.
- High Dynamic Performance: Engineered for speed and precision, the gantry system maintains tight tolerances even across long-travel paths.
- Versatile Automation: Supports multi-robot cutting, long-axis travel, and continuous production strategies for high-throughput automation.
- Structural rigidity: Gantry architecture ensures accurate cutting even at long reaches and high speeds.
- Clean and Efficient: Delivers the core benefits of waterjet technology: no dust, no heat-affected zone (HAZ), and minimal material loss.
- Customizable Layouts: The structure can be customized to fit diverse factory floor layouts and process requirements.
Ideal Overhead Gantry Applications
The Overhead Gantry system excels where parts are too large or complex for standard floor-mounted setups:
- Automotive: Trimming large molded interior parts (e.g., luggage compartments, sound-dampening panels).
- Aerospace: High-precision cutting of large composite structural components.
- Mass Transit/Rail: Processing large fiber-reinforced plastics and insulation materials.
- Heavy Equipment: Cutting large-format non-metallic materials and linings.
Typical System Configuration
| Component | Specification/Typical Option |
| Robot | Single or dual overhead-mounted industrial robots, sized and configured to suit the application |
| Gantry | Heavy-duty steel or aluminum structure engineered for rigidity and long-axis travel |
| Pump | High-pressure waterjet pump from H2O, Flow, or KMT |
| Fixture | Large-format modular fixturing, conveyorized systems, or custom-engineered platforms |
| Special Options | Extended Y-axis travel, part shuttles, automated loading |
When to Choose Overhead Gantry
Choose this configuration when your operation:
- Processes large or awkward parts that don’t fit traditional cells
- Needs to scale to high-volume, multi-robot throughput
- Requires long-axis travel or integrated automated part handling
- Wants maximum flexibility for future product changes
Get Started
Ready for a high-throughput waterjet system? Talk to SPA’s engineering team to review your part envelope and production targets — and see how an Overhead Gantry cell would fit into your facility.
